Part No: CRS-LOSATL

Category: Listen Only Earpieces
  • Description
  • Specifications

Description

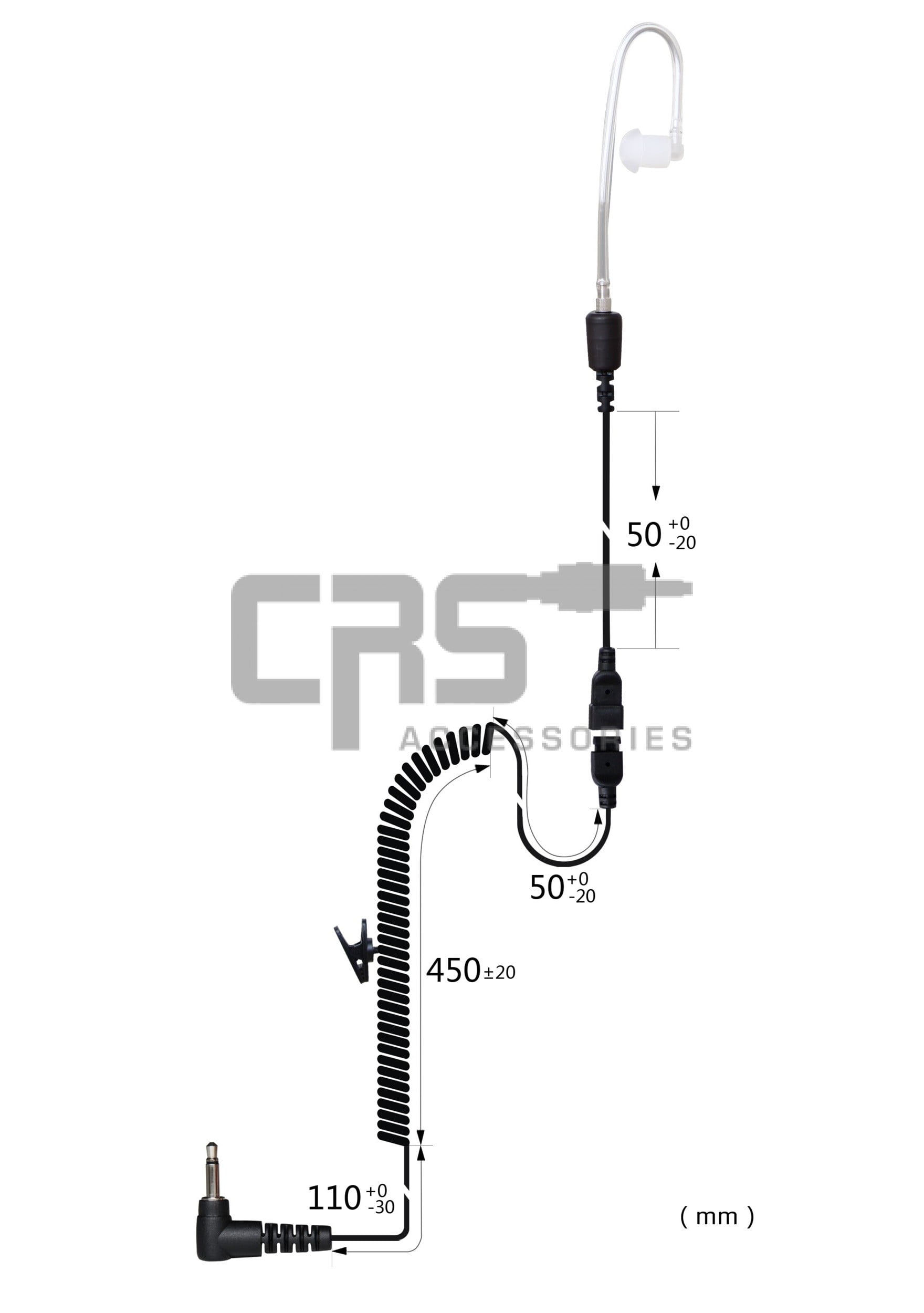

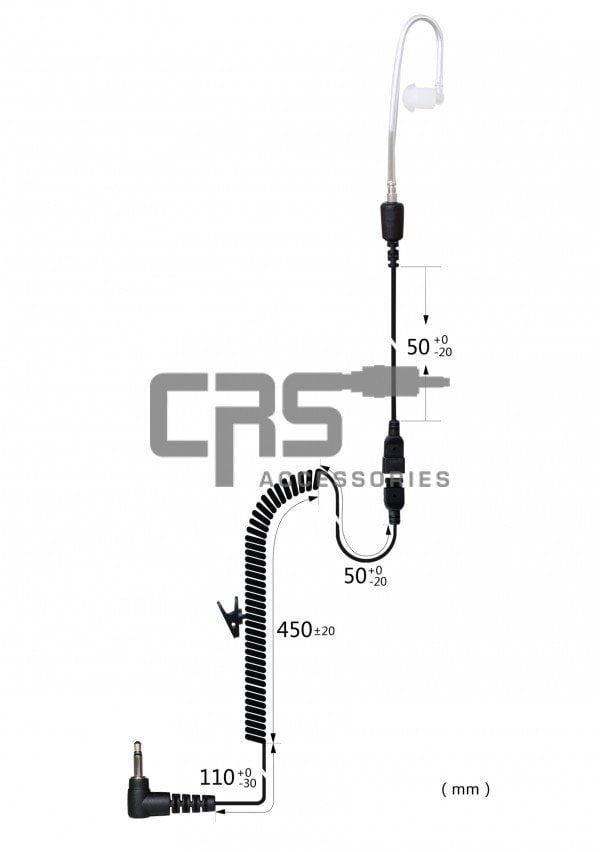

Listen Only Short Acoustic Airtube Earpiece with Long Cable 2.5mm / 3.5mm and 3.5m Threaded Connector

The listen only SHORT acoustic airtube earpiece has been designed to be extremely lightweight and comfortable. The covert design of the speaker transducer gives exceptional audio output and does not require clothing clip support as it is incredible small and sleek. The threaded airtube can be removed easily to enable JUST THE ACOUSTIC AIRTUBE to be made personal issue for staff – GREAT SAVING.

The LONG cable is suitable for direct connection into an office/base or vehicle 2way radio.

Please refer to CRS-LOSATS for use in conjunction with a remote speaker microphone.

FEATURES

  • Surgical grade acoustic tube; lightweight and comfortable.
  • Super flexible PU cable reinforced with Kevlar for maximum durability.
  • Greater flexibility and savings as you can make the acoustic airtube personal issue to staff and leave the harness always attached to the radio.
  • Optional pink ear mould allows ambient sounds to be heard and provides exceptional comfort.
  • Optional noise attenuating earplug ensure more noise is blocked out than standard mushroom eartip – Noise Reduction Rating : NRR 25dB.
  • 1 year warranty.

AVAILABLE FOR

2.5 mm (J2) connection, 3.5 mm (J6) connection and 3.5mm threaded (M3) connection.

  1. Electrical Specifications for Speaker
Speaker Type Mylar Speaker
Speaker Dimensions Ф9.0×4.0 mm
Speaker Impedance 30 Ohms±20%
Rated input Power 0.4W
Max. Input Power 0.8W for 1 Minute
Sound Pressure Level 83 dB±4dB/1mW at 1KHz
Distortion 5% Max. Rated Input at 1KHz
  1. Electrical Specifications for Cable
Open/short circuit standard At least 20KΩ
Acceptable capacitance Less than 0.05µF
Open/short circuit test time 2.0 seconds
Conductance resistance Less than 3.00Ω
Input voltage for insulation resistance test 300V
Insulation resistance standard At least 20MΩ
Insulation resistance test time 0.01 second
  1.  Product Reliability Assurance Test
Storage / Work Environment -40℃~70℃; 24H.
Drop 152.4cm; 10 times.
Bending (Cable) ±90°; 30cycles/min; 200g load; 10000 cycles.
Pulling (Cable) Cable pulling force: 10Kgf;

2-PIN plug pulling force :5Kgf;

Speaker pulling force: 5Kgf

Plug, Jack pulling force :5Kgf;

PTT Life The test is not applicable
Electronic static discharge Connect discharge: 8KV; disconnect discharge: 15KV
