Part No: CRS-LOEHLL

Category: Listen Only Earpieces
  • Description
  • Specifications

Description

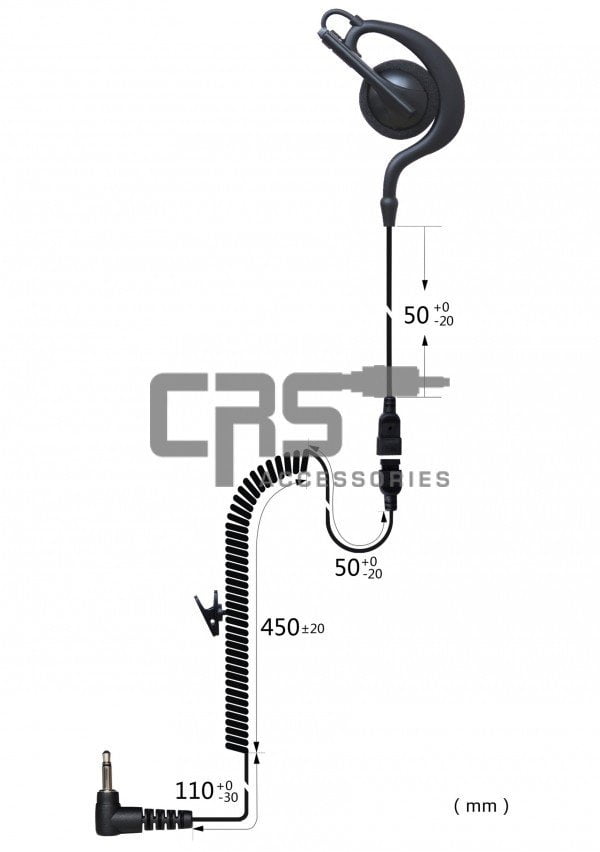

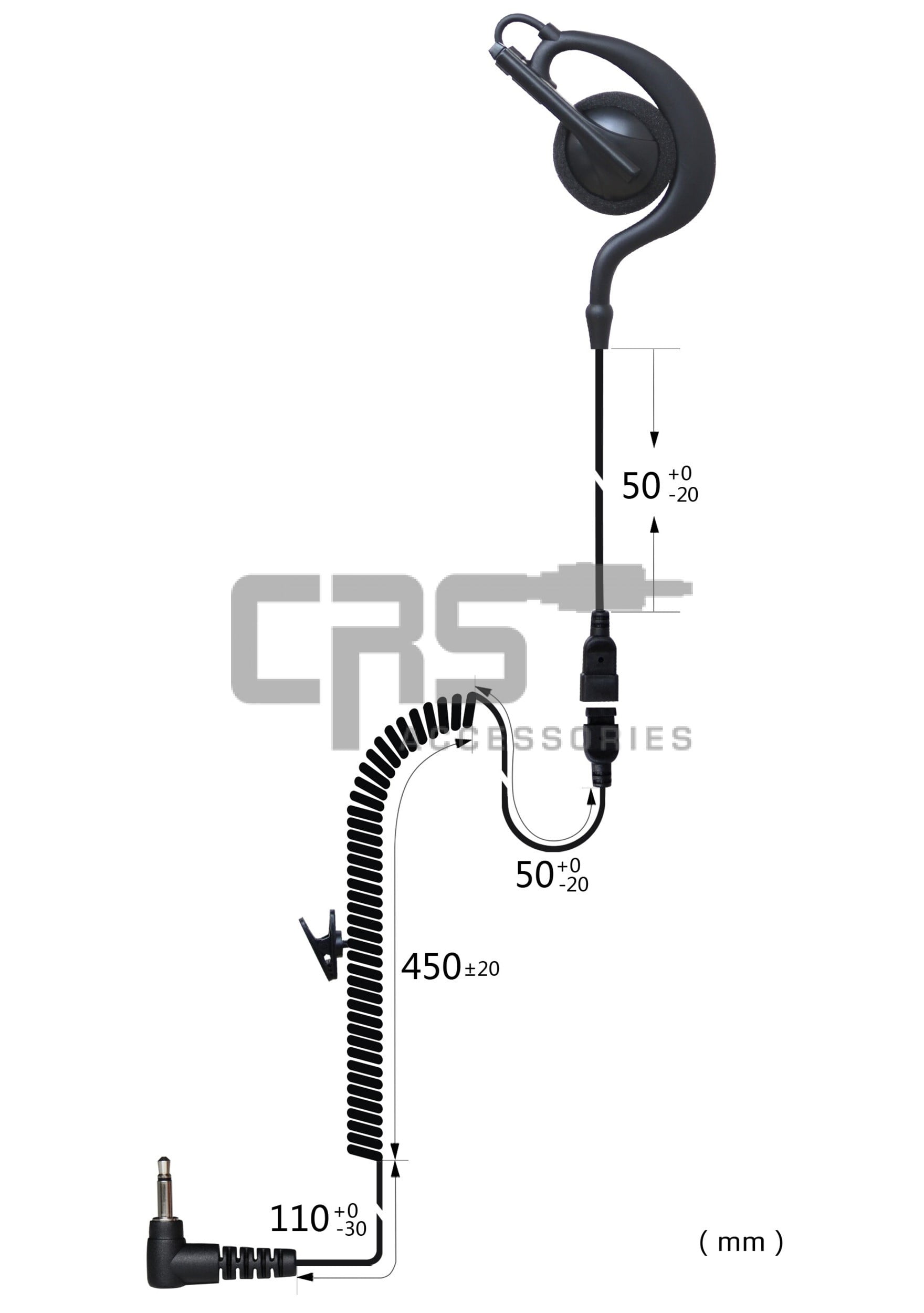

Listen Only Earhook Large Earpiece Long Cable with 2.5mm / 3.5 mm and 3.5mm Threaded Connector

The design of the listen only long cable large earhook earpiece is based on the popular Motorola Mag One accessory but WITHOUT the hinge that breaks. The flexible soft rubber and pivot design is durable, hygienic and suitable for people who do not like anything wedged in their ear canal. The long cable is suitable for direct connection into the radio. Please refer to CRS-LOEHS for use in conjunction with a remote speaker microphone as this is a more suitable option.

Suitable for all industry types in conjunction with a remote speaker microphone but a particular favourite with security, police, hotel personnel, event co-ordinators…

FEATURES

  • The soft and skin-friendly earhook material provides extreme comfort for long-term wear. The user is provided an element of protection in the event of a scuffle with the flexible soft earhook (no hard plastic breaking or pushing into the side of the head).
  • Hygienic, non intrusive design.
  • Won’t break at the hinge connection like the Mag One – there is no hinge just flexible rubber.
  • Pivot design allows for wear in the left or right ear.
  • Super flexible PU cable reinforced with Kevlar for maximum durability.
  • 1 year warranty.

AVAILABLE CONNECTIONS

2.5 mm (J2) connection and 3.5 mm (J6) connection

  1. Electrical Specifications for Speaker
Speaker Type Mylar Speaker
Speaker Dimensions Ф23.0 mm
Speaker Impedance 32 Ohms±20%
Rated input Power 0.05 W
Max. Input Power 0.1 W for 1 Minute
Sound Pressure Level 115 dB±4dB/1mW at 1KHz
Distortion 5% Max. Rated Input at 1KHz
  1.  Electrical Specifications for Cable
Open/short circuit standard At least 20KΩ
Acceptable capacitance Less than 0.05µF
Open/short circuit test time 2.0 seconds
Conductance resistance Less than 3.00Ω
Input voltage for  insulation resistance test 300V
Insulation resistance standard At least 20MΩ
Insulation resistance test time 0.01 second
  1.  Product Reliability Assurance Test
Storage /Work Environment -40℃~70℃; 24H.
Drop 152.4cm; 10 times.
Bending (Cable) ±90°; 30cycles/min; 200g load; 10000 cycles.
Pulling (Cable) Cable pulling force: 10Kgf;

2-PIN plug pulling force :5Kgf;

Speaker pulling force: 5Kgf

Plug, Jack pulling force :5Kgf;

PTT Life The test is not applicable
Electronic static discharge Connect discharge: 8KV; disconnect discharge: 15KV
Connector Chart
