Part No: CRS-LODHS

Category: Listen Only Earpieces
  • Description
  • Specifications

Description

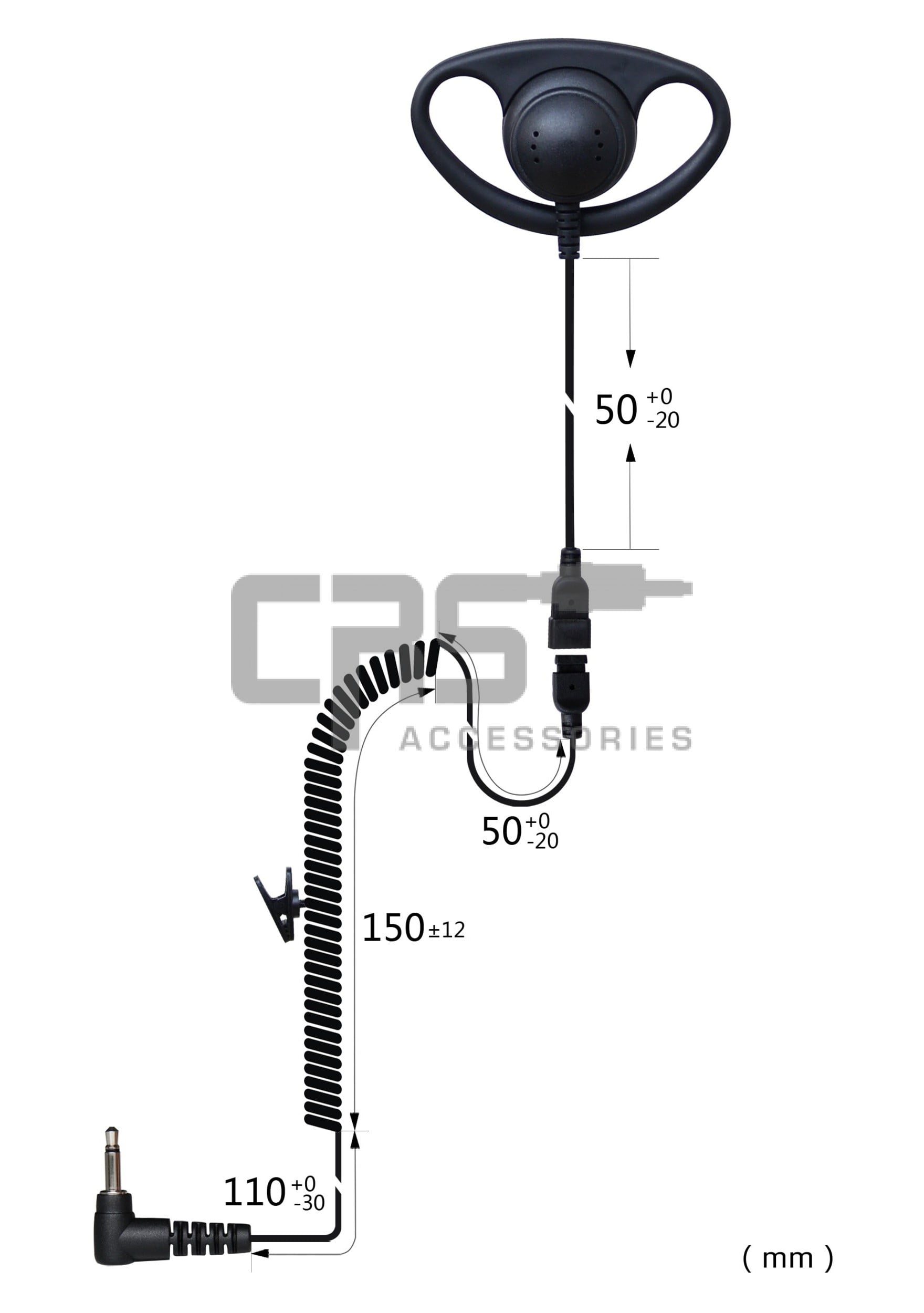

Listen Only D-Hook Earpiece with Short Cable 2.5mm / 3.5mm Connector

The listen only short cable D-Hook earpiece has been designed for comfort, to be non intrusive and very hygienic. The short cable is only suitable for use in conjunction with a remote speaker microphone. Please refer to CRS-LODHL if connection is required direct into the radio.

Suitable for all industry types in conjunction with a remote speaker microphone but a particular favourite with security, police, hotel personnel, event co-ordinators…

FEATURES

  • The soft and skin-friendly D-Hook material provides extreme comfort for long-term wear.
  • Extremely hygienic as their is no penetration into the ear canal.
  • Able to be worn on the left or right ear.
  • Super flexible PU cable reinforced with Kevlar for maximum durability.
  • 1 year warranty.

AVAILABLE CONNECTIONS

2.5 mm (J2) connection and 3.5 mm (J6) connection

  1. Electrical Specifications for Speaker
Speaker Type Mylar Speaker
Speaker Dimensions Ф23 mm
Speaker Impedance 32 Ohms±20%
Rated input Power 0.1W
Max. Input Power 0.2W for 1 Minute
Sound Pressure Level 110 dB±4dB/1mW at 1KHz
Distortion 5% Max. Rated Input at 1KHz
  1. Electrical Specifications for Cable
Open/short circuit standard At least 20KΩ
Acceptable capacitance Less than 0.05µF
Open/short circuit test time 2.0 seconds
Conductance resistance Less than 3.00Ω
Input voltage for insulation resistance test 300V
Insulation resistance standard At least 20MΩ
Insulation resistance test time 0.01 second
  1. Product Reliability Assurance Test
Storage / Work Environment -40℃~70℃; 24H.
Drop 152.4cm; 10 times.
Bending (Cable) ±90°; 30cycles/min; 200g load; 10000 cycles.
Pulling (Cable) Cable pulling force: 10Kgf;

2-PIN plug pulling force :5Kgf;

Speaker pulling force: 5Kgf

Plug, Jack pulling force :5Kgf;

PTT Life The test is not applicable
Electronic static discharge Connect discharge: 8KV; disconnect discharge: 15KV
Connector Chart
