Part No: CRS-LOLATMS

Category: Listen Only Earpieces
  • Description
  • Specifications

Description

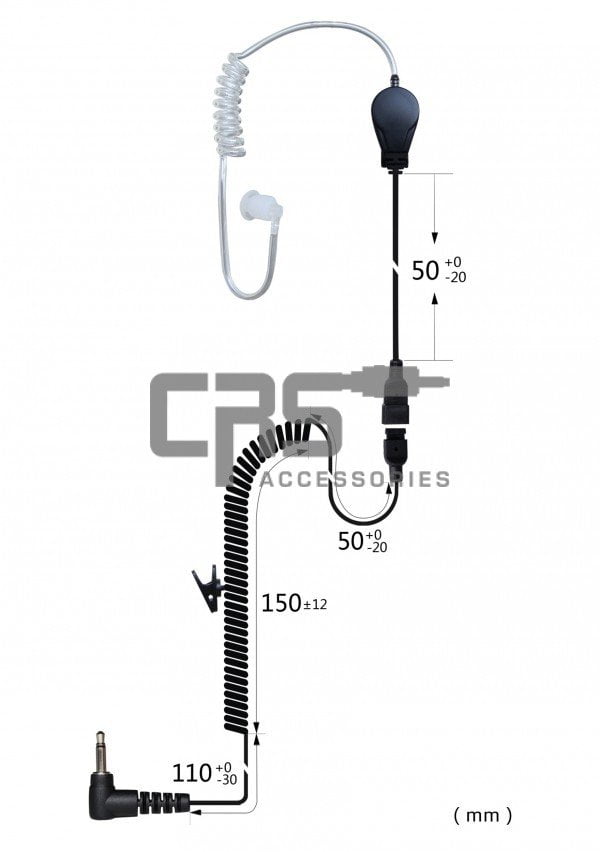

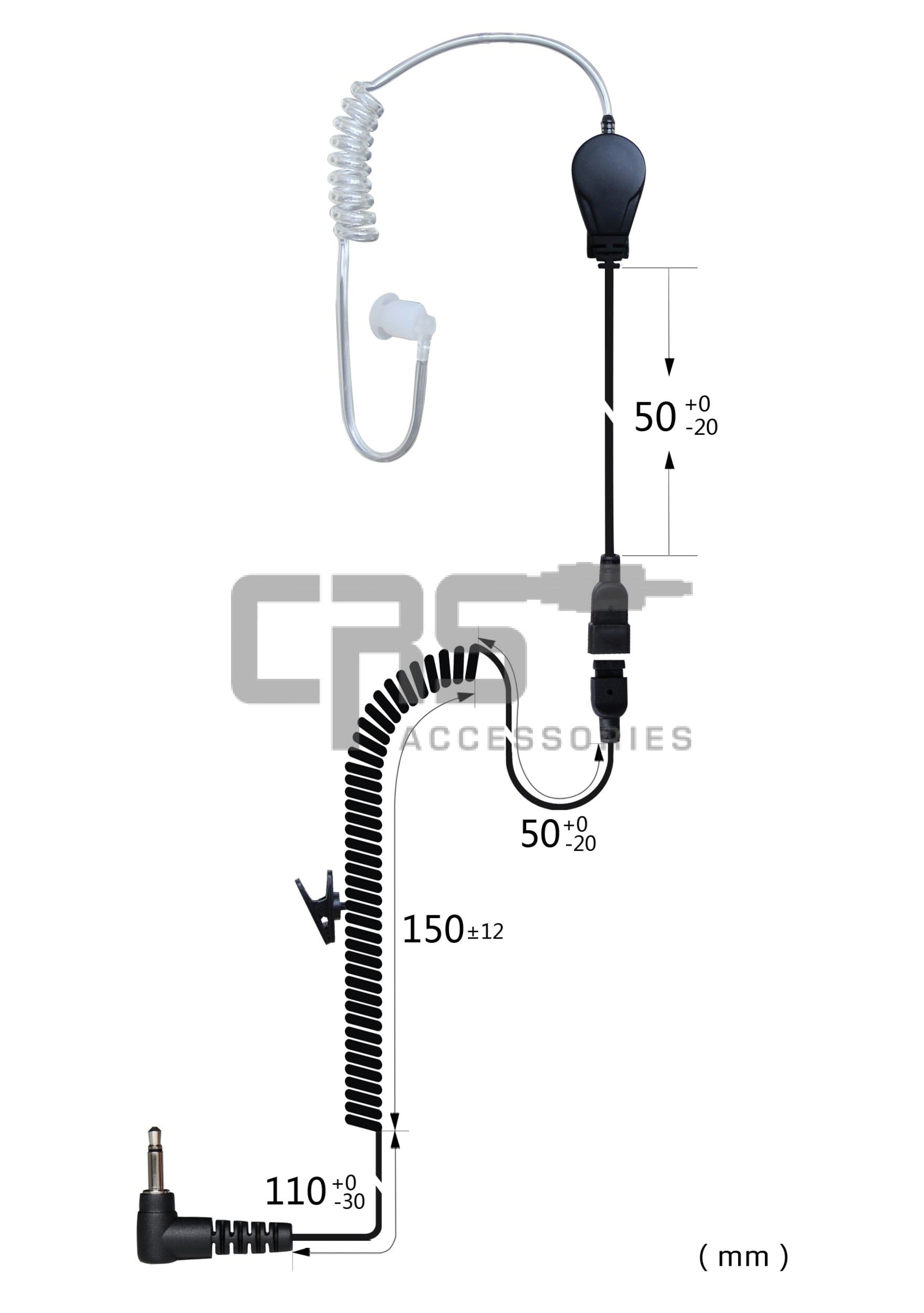

Listen Only Moulded Acoustic Airtube with Short Cable 2.5mm / 3.5mm Connector

The moulded listen only acoustic airtube earpiece has been designed for the savvy buyer. The moulded listen only acoustic airtube earpiece is discrete and lightweight. The transducer gives exceptional audio output BUT the airtube cannot easily be removed and the clothing clip is not replaceable. If you look after your equipment who needs replacement parts at such a great price.

The short cable is only suitable for use in conjunction with a remote speaker microphone.

Please refer to CRS-LOLATML if direct connection is required for an office/base or vehicle 2way radio.

Suitable for all industry types but a particular favourite with security, police, night clubs, hotel personnel, event co-ordinators…

FEATURES

  • Surgical grade acoustic tube; discrete and comfortable.
  • Super flexible PU cable reinforced with Kevlar for maximum durability.
  • Optional pink ear mould allows ambient sounds to be heard and provides exceptional comfort.
  • Optional noise attenuating earplug ensure more noise is blocked out than standard mushroom eartip – Noise Reduction Rating : NRR 25dB.
  • 1 year warranty.

AVAILABLE FOR

2.5 mm (J2) connection and 3.5 mm (J6) connection

  1. Electrical Specifications for Speaker
Speaker TypeMylar Speaker
Speaker DimensionsФ15.3 mm
Speaker Impedance18 Ohms±20%
Rated input Power5mW
Max. Input Power10mW for 1 Minute
Sound Pressure Level85 dB±4dB/1mW at 1KHz
Distortion5% Max. Rated Input at 1KHz
  1.  Electrical Specifications for Cable
Open/short circuit standardAt least 20KΩ
Acceptable capacitanceLess than 0.05µF
Open/short circuit test time2.0 seconds
Conductance resistanceLess than 3.00Ω
Input voltage for insulation resistance test300V
Insulation resistance standardAt least 20MΩ
Insulation resistance test time0.01 second
  1. Product Reliability Assurance Test
Storage / Work Environment-40℃~70℃; 24H.
Drop152.4cm; 10 times.
Bending (Cable)±90°; 30cycles/min; 200g load; 10000 cycles.
Pulling (Cable)Cable pulling force: 10Kgf;

2-PIN plug pulling force :5Kgf;

Speaker pulling force: 5Kgf

Plug, Jack pulling force :5Kgf;

PTT LifeThe test is not applicable
Electronic static dischargeConnect discharge: 8KV; disconnect discharge: 15KV
