Part No: CRS-LOEHEYSL

Part No: CRS-LOEHEYSL

Category:

Description

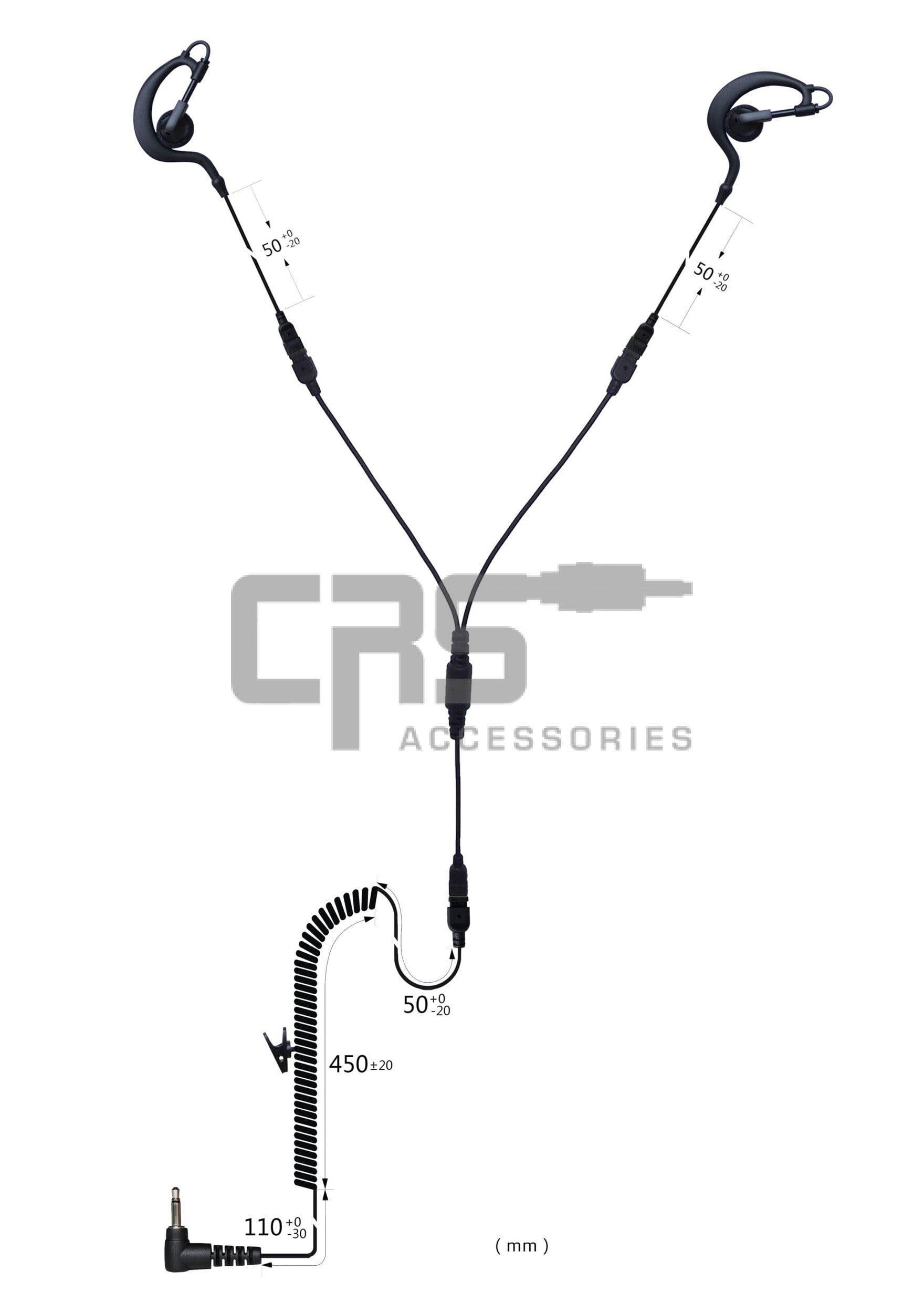

Listen Only Y Splitter Earhook Earpiece with Long Cable 2.5mm/3.5mm/3.5mm Threaded Connector

The Dual Earhook earpiece LONG cable is suitable for direct connection into an office/base or vehicle 2way radios. Please refer to CRS-LOEHS or CRS-LOEHEYSS if you wish to use in conjunction with a remote speaker microphone.

FEATURES

  • The soft and skin-friendly earhook material provides extreme comfort for long-term wear. The user is provided an element of protection in the event of a scuffle with the flexible soft earhook (no hard plastic breaking or pushing into the side of the head).
  • Pivot design allows for wear in the left or right ear.
  • Super flexible PU cable reinforced with Kevlar for maximum durability.
  • 1 year warranty.

AVAILABLE CONNECTIONS

2.5 mm (J2) connection, 3.5 mm (J6) connection and 3.5mm threaded (M3) connection.

  1. Electrical Specifications for Speaker
Speaker Type Mylar Speaker
Speaker Dimensions Ф15.0 mm
Speaker Impedance 32 Ohms±20%
Rated input Power 0.1 W
Max. Input Power 0.2 W for 1 Minute
Sound Pressure Level 111 dB±4dB/1mW at 1KHz
Distortion 5% Max. Rated Input at 1KHz
  1. Electrical Specifications for Cable
Open/short circuit standard At least 20KΩ
Acceptable capacitance Less than 0.05µF
Open/short circuit test time 2.0 seconds
Conductance resistance Less than 3.00Ω
Input voltage for insulation resistance test 300V
Insulation resistance standard At least 20MΩ
Insulation resistance test time 0.01 second
  1. Product Reliability Assurance Test
Storage / Work Environment -40℃~70℃; 24H.
Drop 152.4cm; 10 times.
Bending (Cable) ±90°; 30cycles/min; 200g load; 10000 cycles.
Pulling (Cable) Cable pulling force: 15Kgf;

Plug, Jack pulling force :5Kgf;
PTT Life The test is not applicable
Electronic static discharge Connect discharge: 8KV; disconnect discharge: 15KV
Connector Chart
