Part No: CRS-LOLATL

Category: Listen Only Earpieces
  • Description
  • Specifications

Description

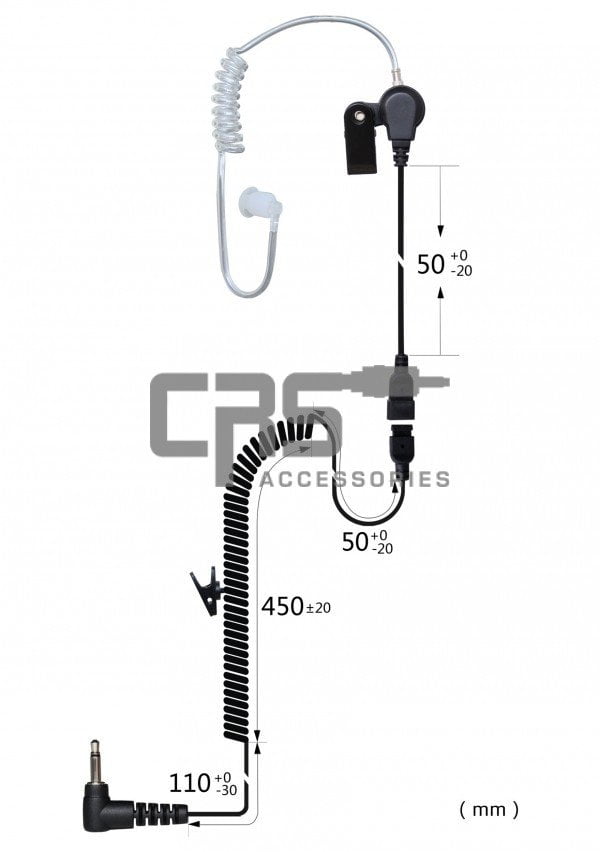

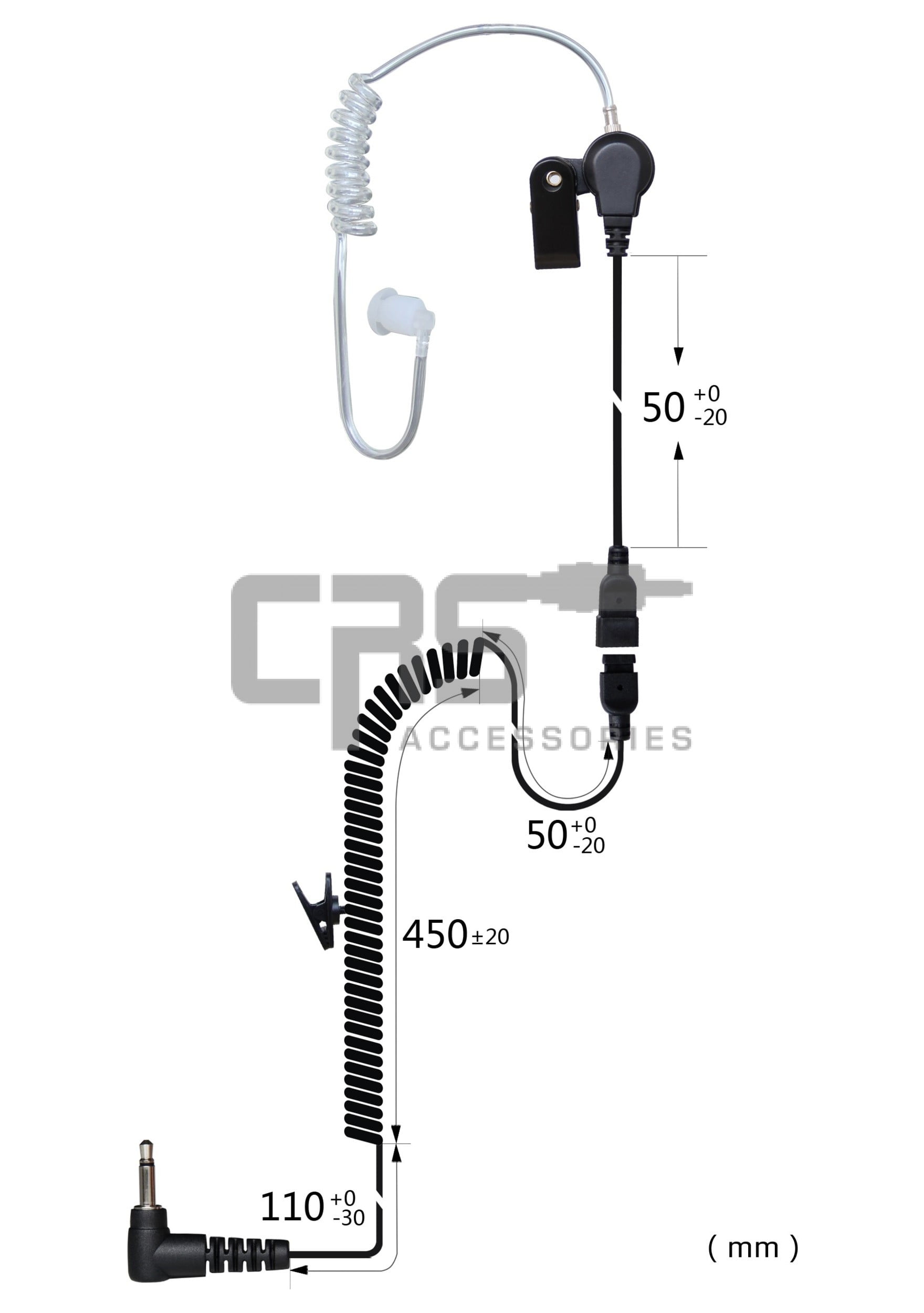

Listen Only Acoustic Airtube Earpiece with Long Cable 2.5mm / 3.5mm / 3.5mm Threaded Connector

The listen only acoustic airtube earpiece has been designed to be discrete, lightweight and comfortable. The covert design of the speaker transducer gives exceptional audio output. The threaded airtube can be removed easily to enable JUST THE ACOUSTIC AIRTUBE to be made personal issue for staff – GREAT SAVING.

The LONG cable is suitable if require for direct connection into an office/base or vehicle 2way radio.

Please refer to CRS-LOLATS or CRS-LOLATEYSS for use in conjunction with a remote speaker microphone.

FEATURES

  • Surgical grade acoustic tube; discrete and comfortable.
  • Super flexible PU cable reinforced with Kevlar for maximum durability.
  • Greater flexibility and savings as you can make the acoustic airtube personal issue to staff and leave the harness always attached to the radio.
  • Optional pink ear mould allows ambient sounds to be heard and provides exceptional comfort.
  • Optional noise attenuating earplug ensure more noise is blocked out than standard mushroom eartip – Noise Reduction Rating : NRR 25dB.
  • 1 year warranty.

AVAILABLE FOR

2.5 mm (J2) connection, 3.5 mm (J6) connection and 3.5mm threaded (M3) connection.

1.    Electrical Specifications for Speaker

Speaker TypeMylar Speaker
Speaker DimensionsФ16.0 mm
Speaker Impedance90 Ohms±20%
Rated input Power5mW
Max. Input Power10mW for 1 Minute
Sound Pressure Level99 dB±4dB/1mW at 1KHz
Distortion5% Max. Rated Input at 1KHz
  1. Electrical Specifications for Cable
Open/short circuit standardAt least 20KΩ
Acceptable capacitanceLess than 0.05µF
Open/short circuit test time2.0 seconds
Conductance resistanceLess than 3.00Ω
Input voltage for insulation resistance test300V
Insulation resistance standardAt least 20MΩ
Insulation resistance test time0.01 second
  1. Product Reliability Assurance Test
Storage / Work Environment-40℃~70℃; 24H.
Drop152.4cm; 10 times.
Bending (Cable)±90°; 30cycles/min; 200g load; 10000 cycles.
Pulling (Cable)Cable pulling force: 10Kgf;

2-PIN plug pulling force :5Kgf;

Speaker pulling force: 5Kgf

Plug, Jack pulling force :5Kgf;

PTT LifeThe test is not applicable
Electronic static dischargeConnect discharge: 8KV; disconnect discharge: 15KV
Connector Chart
