G-Hook Earpiece
We supply a variety of earpiece options which can be purchased separately to suit our unique harness kits.
Your choice – just tell us what you want.

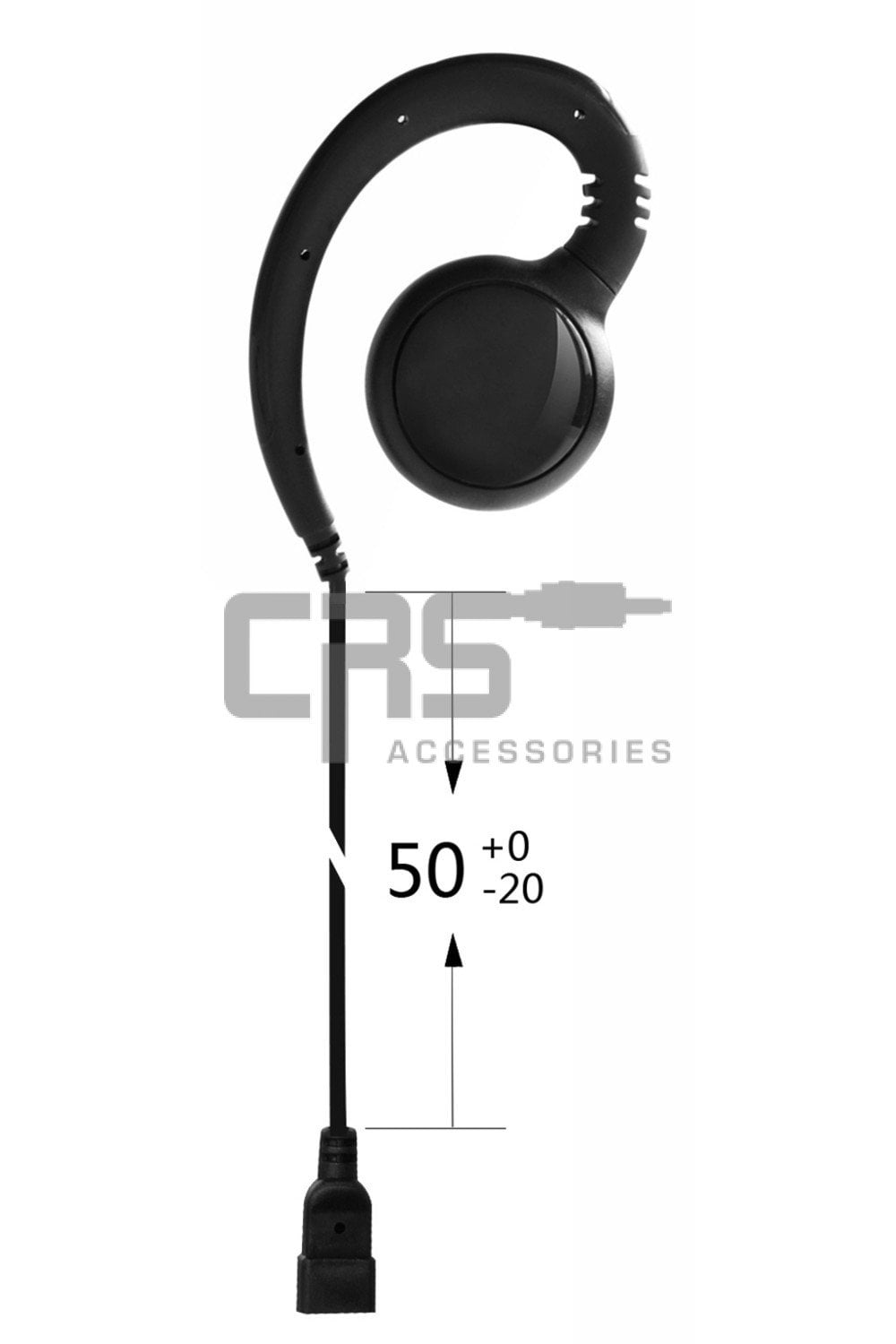

CRS-GH – GHook earpiece is a non intrusive and extremely comfortable earpiece.
FEATURES
SUITS
1 Wire, 2 Wire Harness Kits, etc
| Speaker Type | Mylar Speaker |
| Speaker Dimensions | Ф23 mm |
| Speaker Impedance | 32 Ohms±20% |
| Rated input Power | 0.1W |
| Max. Input Power | 0.2W for 1 Minute |
| Sound Pressure Level | 110 dB±4dB/1mW at 1KHz |
| Distortion | 5% Max. Rated Input at 1KHz |
| Storage / Work Environment | -40℃~70℃; 24H. |
| Drop | 152.4cm; 10 times. |
| Bending (Cable) | ±90°; 30cycles/min; 200g load; 10000 cycles. |
| Pulling (Cable) | Cable pulling force: 10Kgf; 2-PIN plug pulling force :5Kgf; Speaker pulling force: 5Kgf |
| PTT Life | The test is not applicable |
| Electronic static discharge | Connect discharge: 8KV; disconnect discharge: 15KV |
Part No: CRS-SAT
