Description
Earbud Earpiece
We supply a variety of earpiece options which can be purchased separately to suit our unique harness kits.
Your choice – just tell us what you want.

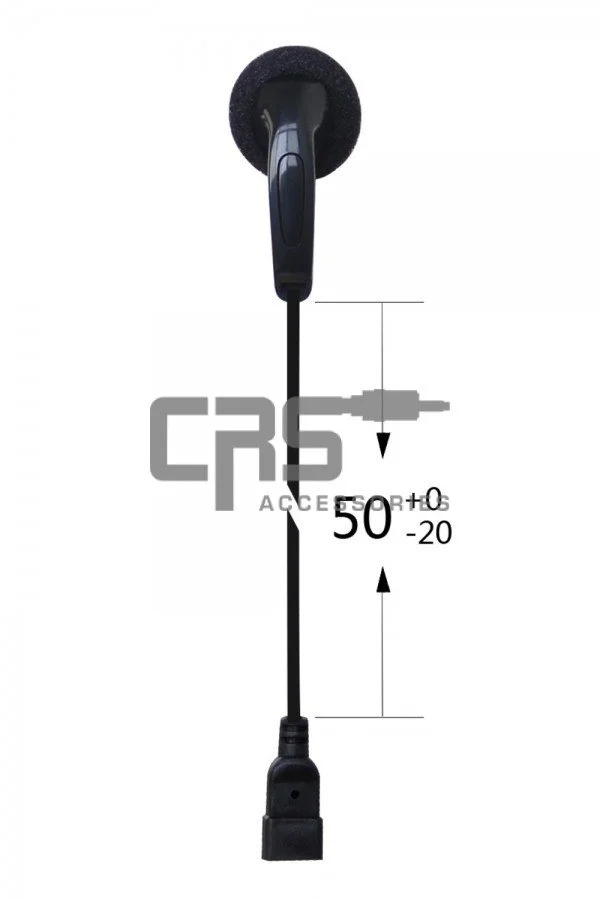

CRS-EB – earbud earpiece is based on the popular mobile phone style accessory but modified for the radio user.
Suitable for all industry types but a particular favourite with security, police, manufacturing, hotel personnel, event co-ordinators…
FEATURES
- Super flexible PU cable reinforced with Kevlar for maximum durability.
- 1 year warranty.
SUITS
1 Wire and 2 Wire Harness Kits, Throat Mics, etc.
1. Electrical Specifications for Speaker
Speaker Type |
Mylar Speaker |
Speaker Dimensions |
Ф15.0 mm |
Speaker Impedance |
32 Ohms±20% |
Rated Input Power |
0.1 W |
Max. Input Power |
0.2 W for 1 Minute |
Sound Pressure Level |
110 dB±4dB/1mW at 1KHz |
Distortion |
5% Max. Rated Input at 1KHz |
2. Product Reliability Assurance Test
Storage / Work Environment |
-40℃~70℃; 24H. |
Drop |
152.4cm; 10 times. |
Bending (Cable) |
±90°; 30cycles/min; 200g load; 10000 cycles. |
Pulling (Cable) |
Cable pulling force: 10Kgf;
2-PIN plug pulling force :5Kgf;
Speaker pulling force: 5Kgf |
PTT Life |
The test is not applicable |
Electronic static discharge |
Connect discharge: 8KV; disconnect discharge: 15KV |
