Part No: CRS-HDHSOH

Category: Dual Muff Headsets
  • Description
  • Specifications

Description

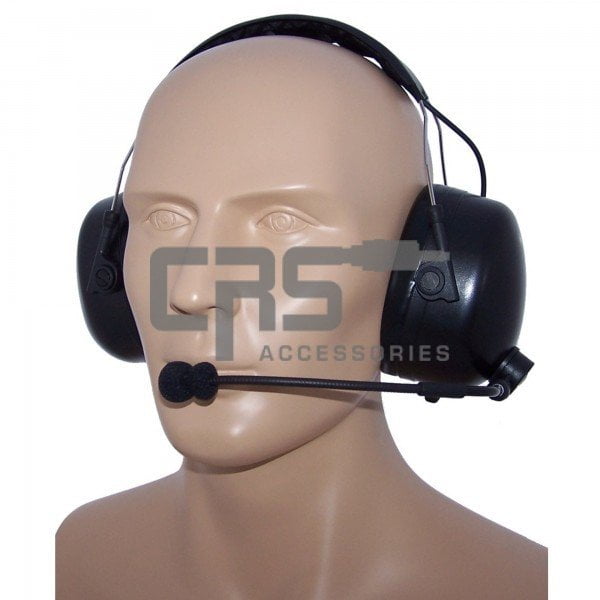

Heavy Duty over the head Headset

At CRS Accessories, we give you lots of choices.  The premium HEAVY DUTY over the head NOISE CANCELLING HEADSET comes with: –

  • replaceable and adjustable amplified dynamic microphone;
  • dual flexible ear cups;
  • replaceable comfortable PVC sponge/foam filled sealed ring ear cushions.

The Heavy duty over the head Headset still comes with the ability to choose either: –

  1. PUSH TO TALK (PTT) IN LINE CABLE (allows you to use the PTT Inline or Earmuff PTT); OR
  2. PUSH TO TALK (PTT) ON THE EARMUFF CABLE (can only use Earmuff PTT).

Simply by choosing the style of cable – SIMPLE – EFFECTIVE – COST SAVING (also enables you to cheaply and easily upgrade your headsets if you upgrade your radios!

The headset is manufactured standard with the positive action earmuff PTT. However, if you chose to purchase the cable with the large high-quality inline PTT button you can use either the Earmuff PTT or the large inline PTT button providing flexibility with different staff preferences. This product has been manufactured with strain relief, meaning that all the pressure is placed on the Kevlar reinforced cable. Therefore, if the cable gets caught in machinery etc the strain relief prevents damage occurring to the earmuff which can be an expensive repair. This allows you to simply purchase a new cable.

A very affordable extreme noise cancelling headset. Suitable for all industry types but a particular favourite with motor racing, production, manufacturing, mining, construction…

FEATURES

  • Interchangeable Radio Interface Cable allowing 1 headset to suit different model radios.  This also allows change-out of the main cable in the event the cable is damaged.
  • Choice of earmuff PTT or inline PTT/earmuff PTT. If you choose the inline PTT option the earmuff PTT still operates.
  • Set up standard with Amplified Dynamic microphone (with option of Electret microphone or Standard Dynamic microphone).
  • Added Strain Relief to ensure protection of the main cable connection socket in the event the cable is caught on machinery, etc. We have noted that when the cable is strained on similar products manufactured by other brands there is a potential for the cable socket to be damaged resulting in costly repairs to dismantle the earmuff and replace. With our design the cable may still fail if strained beyond normal operating conditions, however the earmuff remains protected by the strain relief mechanism, allowing quick cost effective replacement of the main cable.
  • Electret noise cancelling microphone with 300-degree flexibility.
  • NRR 26dB (technical information provided in specifications).
  • Dust proof PTT.
  • 1 year warranty.


AVAILABLE CONNECTIONS

GME –GME
HYT –
H1S, K1, M1, M5
HYTERA –
H4, H5
ICOM –
S2, S2Air (Airband Handheld), S3W, S4, S6
KENWOOD –
K1, K2, K4
KIRISUN –
K1, M1, M5
MOTOROLA –
M1, M4, M5, M6, M7, M12, MT1B
RELM –
M5
SEPURA –
STP
SIMOCO –
M5
TAIT –
T1
TooAir –
K1
VERTEX –
Y3, Y6
BASE/VEHICLE – RJ45

  1. Electrical Specifications for Speaker
Speaker TypeMylar Speaker
Speaker DimensionsФ26.0 mm
Speaker Impedance8 Ohms±20%
Rated input Power1.0 W
Max. Input Power1.5 W for 1 Minute
Sound Pressure Level90dB±4dB/1W at 0.1m 1KHz
Distortion5% Max. Rated Input at 1KHz


2.    Electrical Specifications for Microphone



Microphone TypeECM Microphone
Microphone DimensionsΦ6.0×2.2mm
Sensitivity-42 dB±3dB/U=2.0 V; R=2.2KΩ at 1KHz
Working Voltage1.0~10V
Current≤0.5mA(U=2.0V,Rf=2.2KΩ)at 1.0KHz



  1. Product Reliability Assurance Test



Storage /Work Environment-40℃~70℃; 24H.
Drop152.4cm; 10 times.
Bending (Cable)±90°; 30cycles/min; 300g load; 10000 cycles.
Pulling (Cable)Cable pulling force: 10Kgf;

Adapter pulling force :5Kgf;

Speaker, microphone pulling force: 5Kgf

PTT Life100000 cycles.
Electronic static dischargeConnect discharge: 8KV; disconnect discharge: 15KV
Connector Chart
