Part No: CRS-2WSAT

Category: 2 Wire Earpieces
  • Description
  • Specifications

Description

2 Wire Short Acoustic Airtube with Inline PTT/Microphone

The two wire short acoustic airtube earpiece has been designed to be discrete, lightweight and comfortable. The 2wire harness splits into two at the PT/Mic enabling the user to conceal the cable underneath their clothing with the earpiece running up from the back of the collar/tshirt, etc. The covert design of the speaker transducer gives exceptional audio quality. The heavy duty PTT design coupled with the sensitive Electret condenser microphone makes this a perfect product for noisy environments. The threaded airtube can be removed easily to enable JUST THE ACOUSTIC AIRTUBE to be made personal issue for staff – GREAT SAVING.

Suitable for all industry types but a particular favourite with security, police, night clubs, hotel personnel, event co-ordinators…

FEATURES

  • REPLACEABLE SHORT AIRTUBE SECTION. The short airtube screw in section of this earpiece (CRS-SATC) can be purchased separately making it a hygienic, cost saving solution for staff sharing radios and accessories. The bulk of the earpiece stays on the 2way radio and you simply unscrew the short airtube section and make that personal issue to staff.  For more information refer to Spares & Options in the Earpieces & Surveillance Kit Section.
  • Surgical grade acoustic tube; discrete and comfortable.
  • Greater flexibility and savings as you can make the acoustic airtube personal issue to staff and leave the harness always attached to the radio.
  • Super flexible PU cable reinforced with Kevlar for maximum durability.
  • Accidental activation proof PTT.
  • Optional pink ear mould allows ambient sounds to be heard and provides exceptional comfort.
  • Optional noise attenuating earplug ensure more noise is blocked out than standard mushroom eartip – Noise Reduction Rating : NRR 25dB.
  • Electret Condenser Microphone provides superior audio quality.
  • Positive action PTT for reliable transmissions.
  • 1 year warranty.

AVAILABLE CONNECTIONS

CASSIDIAN – NK1
GARMIN RINO 650 – J4
GME –
GME, GU
HARRIS – MC4
HYT – H1S, K1, M1, M5
HYTERA – H4, H5, H6, H8
ICOM – S3W, S4, S6, S8
KENWOOD – K1, K2, K4
KIRISUN –
K1, KR4, M1, M5
MOTOROLA – HR, M1, M3, M4, M5, M6, M7, M10, M12, M14
RELM – M5
SEPURA – STP
SIMOCO
 – M5
TAIT – T1
ToooAir – K1
VERTEX – Y3, Y4, Y6
UNIDEN – J4, GU

  1. Electrical Specifications for Speaker
Speaker Type Mylar Speaker
Speaker Dimensions Ф9.0×4.0 mm
Speaker Impedance 30 Ohms±20%
Rated input Power 0.4W
Max. Input Power 0.8W for 1 Minute
Sound Pressure Level 83 dB±4dB/1mW at 1KHz
Distortion 5% Max. Rated Input at 1KHz
  1. Electrical Specifications for Microphone
Microphone Type ECM Microphone
Microphone Dimensions Φ4.0×2.0mm
Sensitivity -41 dB±3dB/U=2.0 V; R=2.2KΩ at 1KHz
Working Voltage 1.0~10V
Current ≤0.5mA(U=2.0V,Rf=2.2KΩ)at 1.0KHz
  1. Product Reliability Assurance Test
Storage / Work Environment -40℃~70℃; 24H.
Drop 152.4cm; 10 times.
Bending (Cable) ±90°; 30cycles/min; 200g load; 10000 cycles.
Pulling (Cable) Cable pulling force: 10Kgf;

Adapter, PTT pulling force :10Kgf;

2-PIN plug pulling force :5Kgf;

Plug pulling force :10Kgf;

Speaker, microphone pulling force: 5Kgf.

PTT Life 100000 cycles.
Electronic static discharge Connect discharge: 8KV; disconnect discharge: 15KV
Connector Chart
Print This Product Print This Product
  • TestCat
  • Uncategorized
  • Professional Audio Accessories
    • Bluetooth
    • Respirator Communications
    • Adaptors
      • Adaptors
      • Adaptor Spares & Options
    • Headsets
      • Peltor Headset Cables
      • Lightweight Headsets
      • Listen Only Headsets
      • Single Sided Headsets
      • Dual Muff Headsets
      • Headset Spares & Options
    • Helmet Kits
    • Earpieces & Surveillance Kits
      • Listen Only Earpieces
      • 1 Wire Earpieces
      • 2 Wire Earpieces
      • Options – Harnesses
      • Options – Earpieces
      • Spares & Options
    • Microphones
      • Microphone Spares & Options
      • LMR Vehicle / Base Microphones
      • PMR Microphones
    • Wireless PTT
  • Carrying Accessories
    • Carry Cases
      • Leather
      • Nylon
    • Chest Harnesses / Slings
    • D-Hanger
    • Carry Case Spares & Options
  • Power Supplies
    • Switch Mode Power Supplies
  • Chargers & Batteries
    • Chargers
      • Dual & Multibay Chargers
      • Vehicle Chargers
      • Spares & Options
    • Batteries
      • Vertex / Motorola
  • Miscellaneous
    • GPS Antenna / Receiver
    • VHF & UHF Antennas

Related products

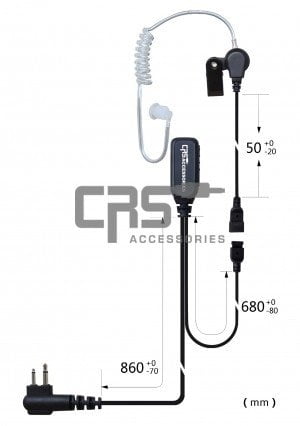

  • Part No: CRS-2WLAT

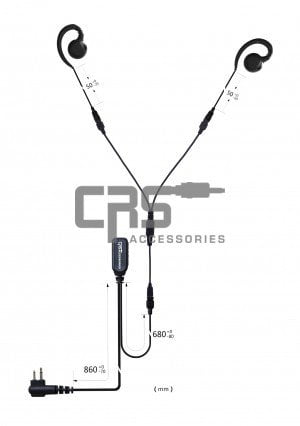

  • Part No: CRS-2WGHEYS

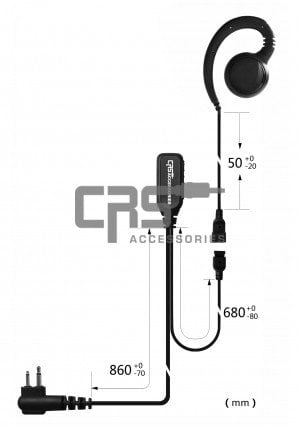

  • Part No: CRS-2WGH
